Injection molding is one of the most widely used manufacturing processes for producing plastic parts with high precision and efficiency. A critical aspect of this process is the design of the mold, specifically the runner system that channels molten plastic into the mold cavities. There are two primary types of runner systems used in injection molding: hot runner molds and cold runner molds. Each system has its advantages and disadvantages, making them suitable for different applications depending on factors such as production volume, material type, cost considerations, and part complexity. Understanding the differences between hot runner injection molding and cold runner systems is essential for manufacturers seeking to optimize their processes and improve production efficiency.
Hot Runner Mold: A High-Efficiency Solution
A hot runner mold is a type of injection mold that uses a heated runner system to keep molten plastic in a liquid state as it flows through the channels into the mold cavities. Unlike traditional molds, where plastic solidifies in the runners and needs to be removed as waste, a hot runner system injection molding process eliminates the need for runner removal, reducing material waste and improving cycle times.

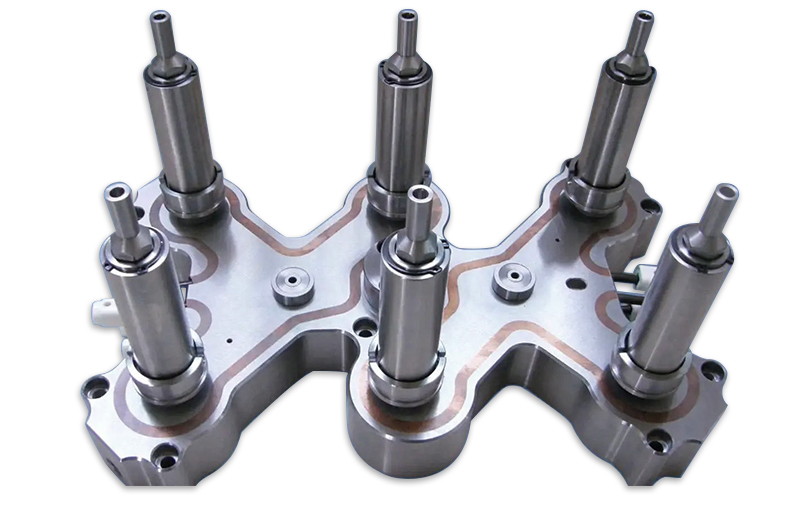

The hot runner mold consists of two main components: the manifold and the nozzles. The manifold distributes the molten plastic evenly to each cavity, while the nozzles control the flow and injection of plastic into the mold. The entire system is maintained at a specific temperature using electric heaters to ensure consistent flow and minimize thermal degradation of the plastic. Hot runner injection molding is commonly used for high-volume production where material savings, efficiency, and product consistency are priorities.
Advantages of Hot Runner Injection Molding
One of the primary benefits of hot runner injection molding is the significant reduction in material waste. Since the plastic remains in a molten state within the runner system, there are no solidified runners to be removed and discarded. This leads to lower raw material costs, especially for expensive engineering-grade plastics. Additionally, because the system eliminates the need for runner removal, cycle times are shorter, increasing overall production efficiency.
Another advantage of the hot runner mold is improved part quality. The continuous and controlled flow of molten plastic ensures uniform filling of the cavities, reducing defects such as short shots, flow marks, and inconsistent mechanical properties. The ability to maintain precise temperature control also enhances the molding of complex geometries and thin-walled parts.
Hot runner system injection molding also supports multi-cavity molds, allowing manufacturers to produce multiple identical parts in a single cycle. This scalability makes it ideal for industries requiring large-scale production, such as automotive, packaging, medical devices, and consumer electronics.
Disadvantages of Hot Runner Systems
Despite its advantages, hot runner injection molding has some drawbacks. One of the main concerns is the higher initial cost of mold fabrication. Hot runner systems require sophisticated components such as heated manifolds, temperature controllers, and precision nozzles, which increase the overall cost of the mold. Additionally, maintenance and troubleshooting can be more complex compared to traditional cold runner molds. If the system experiences a blockage or temperature imbalance, repairs can be time-consuming and expensive.
Another limitation of hot runner molds is their sensitivity to material properties. Some thermoplastics degrade when exposed to prolonged heat, leading to material breakdown and defects in the molded parts. Manufacturers must carefully select materials that are compatible with hot runner systems and ensure proper temperature control to prevent degradation.
Cold Runner Mold: A Cost-Effective Alternative
A cold runner mold is a traditional injection mold design where the plastic flows through unheated channels before reaching the mold cavities. Unlike a hot runner mold, the plastic in the runners solidifies along with the part and must be removed after each cycle. This material is either discarded as waste or reground and reused in subsequent molding processes.
Cold runner molds consist of two or three plates that form the runner system. The molten plastic enters the mold through a sprue and flows into the runners, which then distribute the material to the cavities. Once the plastic solidifies, the part and the runner system are ejected from the mold. In some cases, automated separation systems or robotic handling can be used to remove the runners efficiently.
Advantages of Cold Runner Molds
One of the main advantages of cold runner molds is their lower initial cost compared to hot runner molds. Since cold runner systems do not require heated manifolds or temperature controllers, they are simpler and less expensive to manufacture. This makes them an attractive option for low- to medium-volume production runs, where the cost of a hot runner system may not be justified. Cold runner molds also provide greater flexibility in material selection. Unlike hot runner injection molding, which may cause material degradation in heat-sensitive plastics, cold runner molds are suitable for a wider range of thermoplastics, including those with strict temperature limitations. This makes them ideal for applications requiring specialty materials such as biodegradable plastics or highly filled engineering resins. Another benefit of cold runner molds is their ease of maintenance and troubleshooting. Because the system is mechanically simpler, any issues related to flow, pressure, or material distribution can be identified and resolved more easily than in a hot runner system. This reduces downtime and ensures a more straightforward production process.
Disadvantages of Cold Runner Systems
Despite their cost advantages, cold runner molds generate more material waste due to the solidified runners that must be removed after each cycle. This increases raw material consumption and may lead to higher production costs, especially when using expensive engineering plastics. While some of this waste can be reground and reused, excessive regrinding can negatively affect material properties and part quality. Cold runner molds also have longer cycle times compared to hot runner molds. Since the plastic in the runners must cool and solidify before ejection, each cycle takes longer, reducing overall productivity. This can be a significant drawback for high-volume production where efficiency and speed are critical.
Cold Runner vs. Hot Runner Injection Molding: Key Differences
When comparing cold runner vs. hot runner injection molding, several factors must be considered, including cost, material efficiency, cycle time, and maintenance requirements.
- Material Waste: Hot runner molds eliminate material waste by keeping the plastic in a molten state, while cold runner molds produce solidified runners that require removal and disposal.
- Cycle Time: Hot runner injection molding has shorter cycle times due to continuous plastic flow, whereas cold runner molds require additional cooling time before ejection.
- Initial Cost: Hot runner systems have higher upfront costs due to the need for heated components, while cold runner molds are more cost-effective to manufacture.
- Material Compatibility: Cold runner molds offer greater flexibility for heat-sensitive materials, whereas hot runner systems may cause material degradation if not properly managed.
- Maintenance and Complexity: Hot runner molds require precise temperature control and specialized maintenance, whereas cold runner molds are simpler and easier to maintain.
Choosing the Right Runner System for Your Application
Selecting between a hot runner mold and a cold runner mold depends on several factors, including production volume, budget constraints, material selection, and part complexity. Hot runner injection molding is best suited for high-volume manufacturing, where material savings and cycle time reduction justify the higher initial investment. It is ideal for producing complex parts with consistent quality and minimal waste. Cold runner molds, on the other hand, are preferred for low- to medium-volume production or applications requiring heat-sensitive materials. They offer a lower-cost solution with easier maintenance and setup. However, manufacturers must consider the impact of material waste and longer cycle times when choosing this option. Both systems play a vital role in modern injection molding, providing manufacturers with flexible solutions to meet diverse production needs. By understanding the differences and evaluating key factors, manufacturers can optimize their processes to achieve cost-effective and high-quality plastic parts.
The Impact of Runner Systems on Production Efficiency
The choice between a hot runner and a cold runner mold has a direct impact on production efficiency. Manufacturers aiming for high-speed, large-scale production often prefer hot runner systems because they eliminate runner waste, improve cycle times, and ensure more consistent part quality. However, in certain cases, cold runner systems remain relevant, particularly for projects with specific material requirements or lower production volumes.
One of the biggest advantages of a hot runner system is its ability to produce complex, high-precision parts with minimal material waste. The elimination of solidified runners means there is no need for additional processing steps to remove excess material. This leads to a more streamlined production workflow, reducing the risk of contamination and minimizing labor costs.
On the other hand, cold runner molds still find extensive use in industries where material versatility is essential. Unlike hot runner systems, which require strict temperature control, cold runners can handle a wide range of thermoplastics, including heat-sensitive materials. This flexibility makes them ideal for applications that demand specific resin properties, such as impact resistance, flexibility, or chemical resistance.
Applications of Hot Runner and Cold Runner Molds in Various Industries
Both hot runner and cold runner molds are widely used in industries that rely on injection molding to manufacture high-quality plastic components. Each system offers unique benefits depending on the industry’s specific needs.
Automotive Industry
In the automotive sector, manufacturers require durable, lightweight, and high-precision components. Hot runner injection molding is commonly used to produce dashboard panels, interior trims, bumpers, and electrical housing parts. The ability to manufacture large quantities of identical parts with minimal variation makes hot runners ideal for mass production in the automotive industry.
Cold runner molds, however, are sometimes used for producing rubberized components such as gaskets and seals. Since these parts require flexible materials that might degrade under prolonged heat exposure, cold runner molding offers a suitable alternative.
Medical and Pharmaceutical Industry
Medical devices and pharmaceutical packaging require precision and compliance with strict quality standards. Cleanroom injection molding is often used in this sector to prevent contamination and ensure product consistency. In many cases, hot runner molds are preferred for their efficiency, particularly when producing syringe components, IV connectors, and surgical instrument handles.
Cold runner molds are also used in medical applications where small-batch production is needed. For example, custom implants and prototypes may require the flexibility of cold runner molding to accommodate frequent design modifications.
Consumer Electronics
In consumer electronics, high-precision molding is critical for manufacturing components such as housings, buttons, and connectors. Hot runner systems enable the production of complex, intricate parts with tight tolerances, making them a preferred choice for electronic components.
Cold runner molds are sometimes used in low-volume electronics manufacturing, especially when prototyping or working with heat-sensitive resins.
Packaging Industry
The packaging industry relies on injection molding for producing bottles, caps, containers, and other plastic packaging components. Hot runner molds are widely used due to their ability to reduce waste and enhance production speed. The efficient material flow ensures that thin-walled packaging products are formed without defects, making hot runners the preferred choice for high-volume packaging applications.
Cold runner molds, on the other hand, are used when working with biodegradable plastics or specialty packaging materials that require lower processing temperatures.
Environmental Considerations in Runner System Selection
Sustainability has become a growing concern in the manufacturing industry, leading to increased emphasis on reducing waste and improving material efficiency. Hot runner molds are often seen as more environmentally friendly due to their ability to eliminate solidified runners, reducing plastic waste and lowering overall material consumption. However, the increased energy consumption of hot runner systems must also be considered. Since these molds require continuous heating to keep the plastic in a molten state, they consume more electricity compared to cold runner molds. Manufacturers looking to balance efficiency with sustainability must weigh the benefits of reduced material waste against the energy demands of hot runner systems. Cold runner molds, while generating more plastic waste, offer the advantage of lower energy consumption. Additionally, advancements in material recycling have made it possible to reprocess and reuse solidified runners, reducing the environmental impact of cold runner injection molding.
Innovations in Injection Molding Runner Systems
The injection molding industry is continuously evolving, with new advancements aimed at improving efficiency, reducing waste, and enhancing part quality. Some of the latest innovations include:
Hybrid Runner Systems
Hybrid runner systems combine elements of both hot and cold runner technologies, offering manufacturers a balance between efficiency and cost-effectiveness. These systems allow certain sections of the runner to remain heated while others are cooled, optimizing material flow and minimizing waste.
Advanced Temperature Control Technologies
New temperature control technologies have improved the performance of hot runner molds, allowing for precise adjustments and better thermal stability. These innovations help prevent material degradation and improve the overall reliability of the injection molding process.
3D Printing for Mold Components
The use of 3D printing to create mold components has enabled faster prototyping and reduced costs for custom molds. By integrating additive manufacturing with traditional mold-making techniques, manufacturers can achieve greater flexibility and efficiency.
The Role of Zinc Die Casting in Injection Molding
While plastic injection molding remains dominant in manufacturing, metal die casting is another widely used process for producing high-strength components. One notable example is Zinc Die Casting, which is commonly used for creating durable metal parts in the automotive, electronics, and consumer goods industries. Zinc die casting offers several advantages, including excellent dimensional stability, corrosion resistance, and the ability to create intricate shapes with high precision. Compared to traditional plastic injection molding, zinc die casting is ideal for applications requiring superior mechanical properties and durability. In some cases, manufacturers integrate both zinc die casting and plastic injection molding in hybrid manufacturing processes. This approach is often used in industries that require metal components with overmolded plastic elements, providing a balance between strength and lightweight design.
Conclusion
Both hot runner and cold runner molds play crucial roles in the injection molding industry, with each system offering distinct advantages depending on production requirements. Hot runner injection molding is the preferred choice for high-volume manufacturing, where efficiency, material savings, and part consistency are essential. Cold runner molds, on the other hand, provide greater material flexibility and lower initial costs, making them suitable for specialized applications. Understanding the differences between these two systems enables manufacturers to make informed decisions based on factors such as production scale, material selection, cost considerations, and environmental impact. Additionally, advancements in mold technology, such as hybrid runner systems and improved temperature control, continue to enhance the efficiency of injection molding processes.
For industries requiring both plastic and metal components, integrating processes like Zinc Die Casting can further expand manufacturing capabilities. By leveraging the right combination of technologies, manufacturers can optimize their production lines, reduce costs, and achieve superior product quality.
